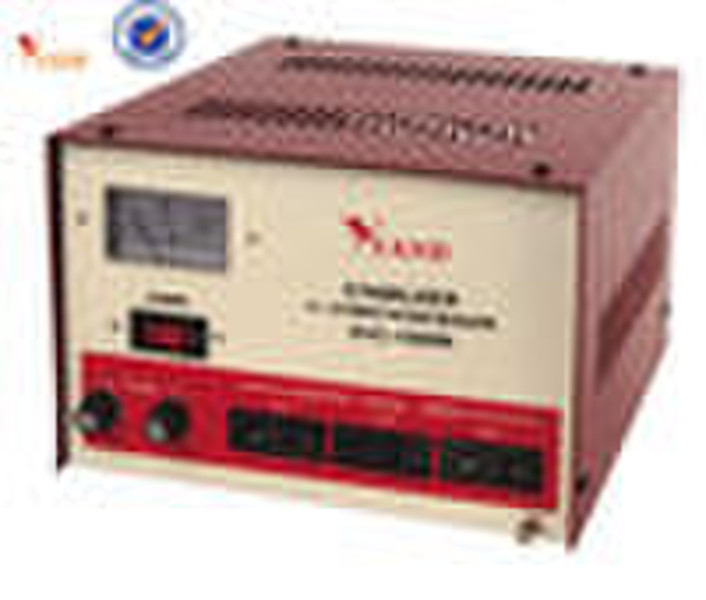

SVC Voltage Stabilizer

SVC Voltage Stabilizer SVCseries High Accuracy Full-auto AC Voltage Regulator, one series of our main products are such constructed that they composed of contact type self-coupling voltage regulator, servo motor, automatic control circuit, etc. When the voltage of the network is not steady of the load varies, the automatic sampling control circuit makes a signal to drive the servo motor to adjust the position of the carbon brush of the self-coupling voltage regulator so to have the output voltage regulated to the rating and to obtain the steady state. It has the advantages such as wide varieties, complete specifications, beautiful appearance and the characteristics such as undistorted waveform, high efficiency, reliable performance, long-term operation. It also being provided with the protective functions such as time-delay, over-voltage, under-voltage, etc. This series of regulator of the general type, are the ideal voltage stabilized power sources which can be widely applied to any occasions requiring power to assure the normal operation of your power driven equipment. Main Technical DataModelSVC0.5-5KVA SVC7.5-20KVAPhaseSingleInput voltage160V-240VOutput voltage220V±3%; 110V±3%Under-voltage protection184V±4V(set arcording to users requirement, generally not set)Over-voltage protection246V±4V(set arcording to users requirement, generally not set)Efficency> 90%Regulating speed< 1S(when input voltage varies 10%)Temperature-rise< 60°c(under full-load condition)Frequency50 60HzWaveform distortionNo additional distrortionMax rated output current0.5KVA 2A, 1KVA 4A, 1.5KVA 6A, 2KVA 8A, 3KVA 12A, 5KVA 20A, 10KVA 40A, 15KVA 60A, 20KVA 80A, 30KVA 120AAmbient temp-5°c +40°cRelative humidityLess than 90% Update Date:2010-5-11 18:35:58
