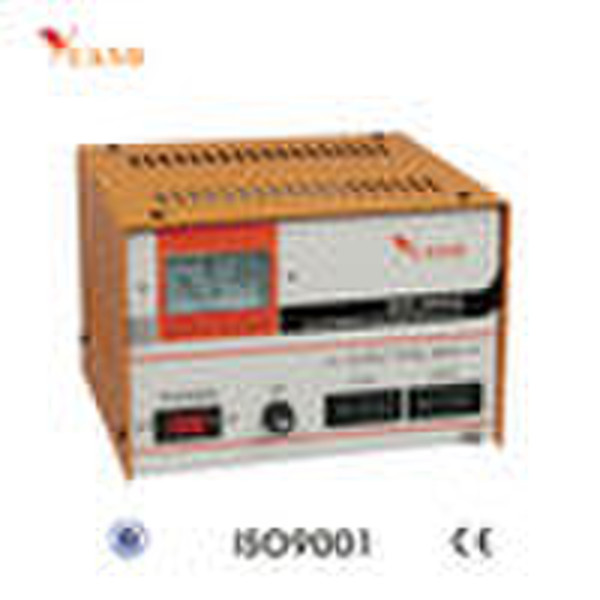

SVC Voltage Regulator

SVC Voltage Regulator General SVC series single-phase high precision full-auto AC voltage regulator adopts linear integrated circuit to form the control system, drive the contact voltage regulator to regulate automatically by controlling the servo motor, It is provided with delay, over-voltage, under-voltage and over-current protection function which ensure the voltage regulator can supply power safely. It has the advantage of high efficiency, same input and output voltage waveform, stable output, work continuously and so on. Main Advantage Excellent output voltage waveform, stable regulating process, no lost electricity phenomenon. High accuracy of output voltage, generally it is fixed in 220±3% when leave the factory, wide input voltage range, strong load adaptability with satisfiable load property. It has under-voltage, over-voltage and over-current protection function. It can cut off the power supply automatically to ensure the safety of the consumer when output voltage is over-high or the input current is over-current. It adopts high breaking capacity mini circuit breaker with the over-voltage protection function when it is over load or shortcircuit. It uses high property carbon brush which prolong the service voltage regulator. Main Technical DataModelSVC0.5-5KVA SVC7.5-20KVAPhaseSingleInput voltage160V-240VOutput voltage220V±3%; 110V±3%; 220V±3%Under-voltage protection184V±4V(set arcording to users requirement, generally not set)Over-voltage protection246V±4V(set arcording to users requirement, generally not set)Efficency> 90%Regulating speed< 1S(when input voltage varies 10%)Temperature-rise< 60°c(under full-load condition)Frequency50 60HzWaveform distortionNo additional distrortionMax rated output current0.5KVA 2A, 1KVA 4A, 1.5KVA 6A, 2KVA 8A, 3KVA 12A, 5KVA 20A, 10KVA 40A, 15KVA 60A, 20KVA 80A, 30KVA 120AAmbient temp-5°c +40°cRelative humidityLess than 90%Model and Spec.Spec. & Model(KVA)
