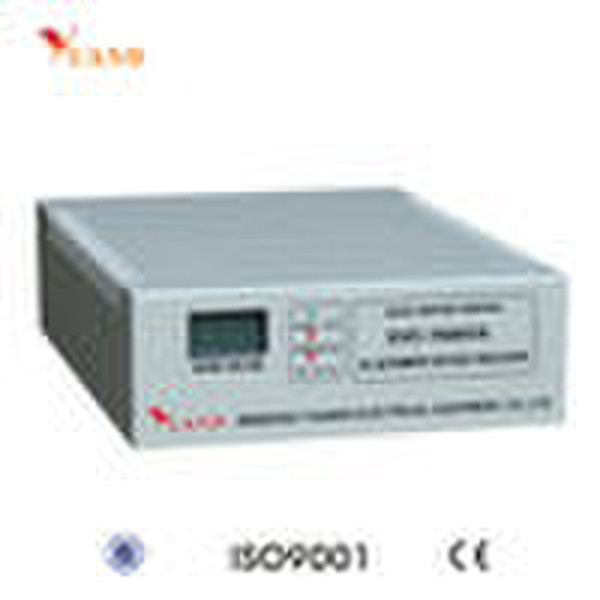

AVR Voltage Regulator

AVR Voltage Regulator SVC-N series full automatic AC voltage regulator is composed by contact voltage regulator, sampling control current and servo motor etc. When voltage of network is not steady or the load varies, the automatic sampling control circuit system to make a signal to drive the servo motor to adjust the position of the carbon brush in the selfcoupling regulator so as to make the output voltage reach to the rate voltage. It with small body, light weight, low energy consumption, available performance, long time operation. It has wide scope high precision, no waveform distortion, high efficiency and availability. It is one of very ideal automatic AC voltage regulator need by household. Main Technical DataModelSVC-N 0.5-8 KVAPhaseSingleInput voltage150V-270VOutput voltage220V±3% 110V±3%Over-voltage protection246V±4VEfficency> 90%Insulating resistanceNormally more than 2MΩFrequency50 60HzWaveform distortionNo additional distrortionAmbient temp-5°c +40°cRelative humidityLess than 90%Update Date:2010-5-11 18:32:48
